The WaltX Spark 1 V2 is a Motocross inspired Electric Bicycle built to conquer the Trails. The unique frame geometry, powerful Logan Mechanical Disc Brakes and a powerful and safe 7.8Ah battery makes this Electric Bicycle your ideal off-road companion.
Max Speed (Km/hr)
25
Maximum Riding Speed on Battery Power
Range (Kms)
35 – 50
With Pedal Assist Cycling
Charging Time (Hrs)
3 – 4
Battery Charging Time from 0 to 100%

Frame

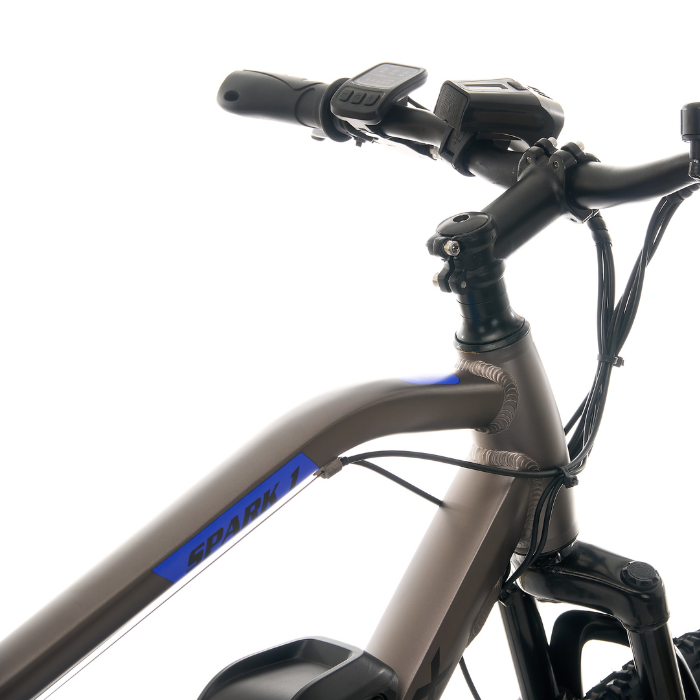

The Spark 1 V2 frame is inspired by Motocross Bikes to give you ultimate performance and comfort. The Lightweight AL Tech 6061 Alloy frame is rust free and can handle the trails with ease. This alloy frame is built using advanced hydroforming technology which ensures the frame tubes are welded smoothly and provides optimum strength.
- FrameAL Tech 6061 Lightweight Aluminium Alloy
- ForkSuspension Fork with 80mm Travel

Battery
The Battery is at the heart of the WaltX Spark 1 V2. The 7.8Ah Lithium-Ion Battery is built in accordance to European Union Safety standards. The battery is detachable which means you can securely take the battery out and charge it easily at home or at office.
- BatteryEU Certified Detachable Smart 36v 7.8Ah Lithium-ion Battery with Waterproof Casing
- Battery PlacementExternal Detachable

Motor
This Electric Bicycle has a Powerful 36V 250W Brushless Rear Hub Motor with waterproof casing. The Spark 1 has 4 different ride modes – Pedal Assist, Throttle, Walk and Cruise Mode. The top speed in Throttle mode is 25kmph which is ideal for cruising around on city roads.
- MotorPowerful 36V 250W Brushless Rear Hub Motor with Waterproof Casing
- Maximum Speed25Km/Hr on battery power

Drivetrain
The WaltX Spark 1 V2 comes with a smooth shifting Shimano Tourney 7-Speed rear derailleur which is connected to a Shimano SIS Trigger shifters. The drivetrain is lag free to give you smooth shifting out on the trails.
- Rear DerailleurShimano Tourney TY300 7-Speed
- ShiftersShimano Trigger Shifter 7-Speed

Brakes
The Logan Mechanical Disc Brakes on the WaltX Spark 1 V2 as powerful as it can get on an Electric Bicycle. These brakes will bring you to a stop safely and quickly across any terrain. The Brake Levers when applied cut off the power to the motor, this safety feature is ideal when trail riding and crowded city roads.
- BrakesLogan Mechanical Disc Brakes
- Safety Throttle Cut OffAvailable in this model
TECHNICAL SPECIFICATIONS
FRAME
AL Tech 6061 Lightweight Aluminium Alloy
FORK
Suspension Fork with 80mm Travel
BATTERY
EU Certified Detachable Smart 36v 7.8Ah Lithium-ion Battery with Waterproof Casing
BATTERY PLACEMENT
External Detachable
MOTOR
Powerful 36V 250W Brushless Rear Hub Motor with Waterproof Casing
MOTOR PLACEMENT
Rear Hub
THROTTLE
Twist Type
DISPLAY
Full LED Display
MAXIMUM SPEED
25km/hr on battery power
PEDAL ASSIT LEVELS
3 Levels
RANGE
35km to 50km (Pedal Assist)/25km to 35km (Throttle)
CHARGING VOLTAGE
100-240V automatic with Smart Charging (Standard Indian Plug Point)
CHARGING TIME
3-4Hrs for 0 to 100% charge
REAR DERAILLEUR
Shimano Tourney TY300 7-Speed
SHIFTERS
Shimano Trigger Shifter 7-Speed
CHAIN
Anti-Rust Steel Chain
FREEWHEEL
Shimano/Tri-Diamond 7-Speed
RIMS
Double Wall Alloy Rims
COLOR
Matte Black with Turquoise Blue and Grey
TYRES
DSI 26″ x 2.0″
BRAKES
Logan Mechanical Disc Brakes
BRAKE LEVERS
Easy 3-finger lever with auto battery cut-off
HANDLEBAR
DTS 600mm Comfort Raiser Handlebar
STEM
Alloy Stem
SEAT POST
Steel Seat Post with Easy Quick Release Lever
SADDLE
Ergonomic Cushioned Wide Saddle
PEDAL
Wide Platform Pedals
KICKSTAND
Easy spring action heavy duty side stand
SAFETY THROTTLE CUTOFF
Yes
WALK MODE
Yes
BELL
Tring Bell
LIGHTS
Powerful Front and Rear LED Lights
