2
Max Speed (Km/hr)
25
Maximum Riding Speed on Battery Power
Range (Kms)
35 – 50
With Pedal Assist Cycling
Charging Time
3 – 4
Battery Charging Time from 0 to 100%

Frame

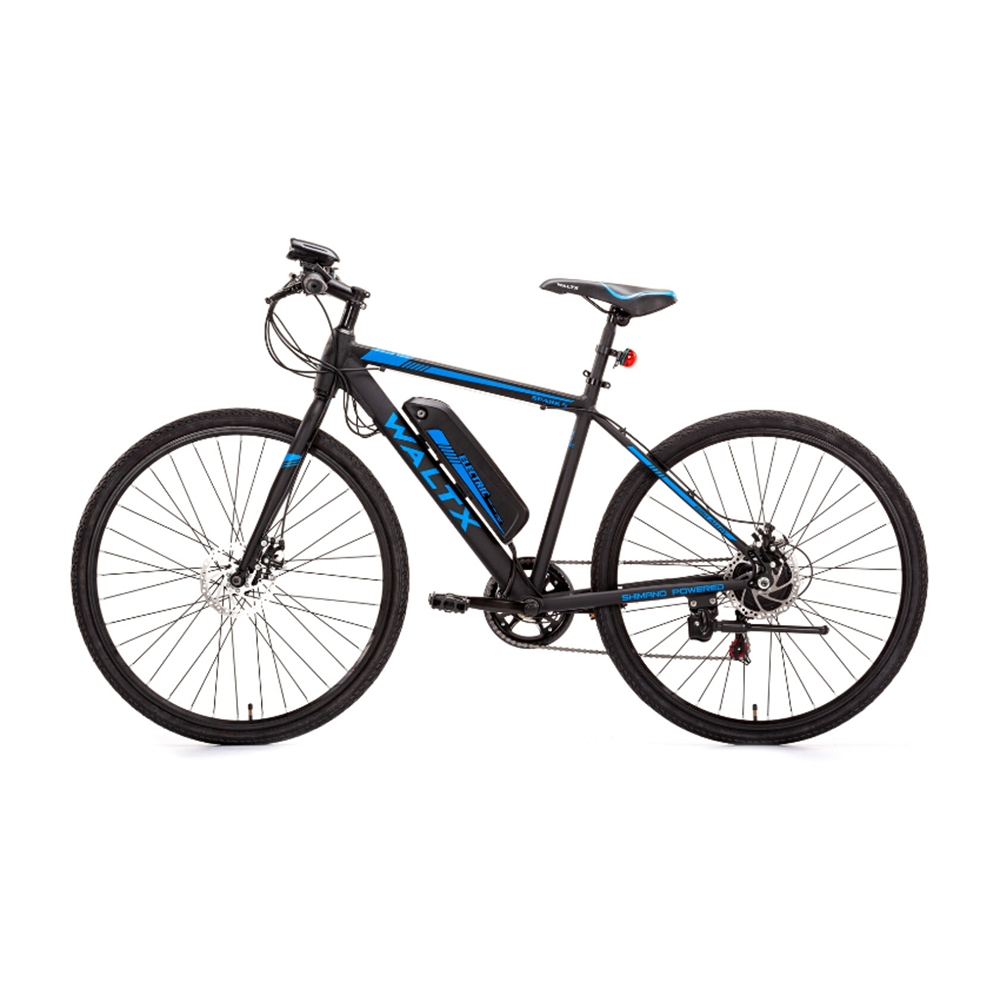

The WaltX Spark 5 is a Hybrid Focused Electric Bicycle built on a AL Tech 6061 Lightweight Aluminium Alloy Frame. This alloy frame is built using advanced hydroforming technology which ensures the frame tubes are welded smoothly and at optimum strength. The frame geometry is comfort focused, providing the rider a relaxed riding posture.
- FrameAL Tech 6061 Lightweight Aluminium Alloy (Raiser Handlebar)
- HandlebarDTS branded 600mm comfort handlebar

Battery
The Spark 5 has a EU Certified Detachable Smart 36V 7.8Ah Lithium-ion battery with waterproof casing. The battery provides a mileage of 35km to 50km in Pedal Assist Mode and 25km to 35km in Throttle Mode.
- BatteryEU Certified Detachable Smart 36v 7.8Ah Lithium-ion battery with waterproof casing
- Charge Time3 – 4 hours for 0 to 100%

Motor
The Spark 5 from WaltX has a Powerful DL 36V 250W Brushless Rear Hub Motor with waterproof casing. This E-Bicycle has two riding modes – Pedal Assist Mode – Low, Medium and High and Throttle Mode. In Throttle mode you will get a top speed of 25kmph.
- MotorPowerful DL 36V 250W Brushless Rear Hub Motor with waterproof casing
- Max Speed25kmph in Throttle Mode

Drive Train
The WaltX Spark 5 Electric Bicycle comes with a Shimano Tourney TY300 7-Speed derailleur which is connected to a Shimano TX30 Trigger Shifter. The 7-Speed drivetrain is useful when you want to ride the E-Bicycle without battery power.
- Rear DerailleurShimano TY300 7-Speed
- ShifterShimano TX30 Trigger Shifter

Brakes
The Spark 5 comes with a pair of Logan Mechanical Disc Brakes at the front and back. This powerful brake system will bring the bicycle to a halt very quickly even when ridden at 25kmph. This E-Bicycle has an Battery Auto cut-off which is activated when the Brakes are applied.
- BrakesLogan branded powerful front and rear mechanical disc brakes
- Brake LeversEasy 3-finger lever with auto battery cut-off (Advanced safety feature)
TECHNICAL SPECIFICATIONS
FRAME6061 Lightweight Aluminium Alloy
FORKFlat Aero Rigid Fork
BATTERYEU Certified Detachable Smart 36v 7.8Ah Lithium-ion battery with waterproof casing
MOTORPowerful DL 36V 250W Brushless Rear Hub Motor with waterproof casing
THROTTLEWuxing branded easy to use throttle accelerator on the right hand side grip
DISPLAYFull LED powered display with 3 pedal assist modes
MAXIMUM SPEED25km/hr on Battery Power
RANGE35km to 40km (On Pedal Assist)
CHARGING VOLTAGE100-240V automatic with smart charging (Standard Indian Plug Point)
CHARGING TIME3-4Hrs for 0 to 100% charge
FRONT DERAILLEURN/A
REAR DERAILLEURShimano Tourney TY300 7-Speed
SHIFTERSShimano TX-30 Trigger Shift- 7-Speed
CHAINAnti-rust strong steel chain
FREEWHEELShimano/Tri-Diamond 7-Speed
RIMSStrong double walled alloy rims
COLORMatte Pitch Black with Azure Blue
TYRESDSI 700x35C
BRAKESLogan branded powerful front and rear mechanical disc brakes
BRAKE LEVERSEasy 3-finger lever with Auto Battery Cut-Off (Advanced safety feature)
HANDLEBARDTS branded 600mm comfort handlebar
STEMAlloy Stem
SEAT POSTSteel seat post with easy quick release lever
SADDLEBoksn branded ergnomic cushioned wide saddle
PEDALComfortable and wide platform pedals
KICKSTANDEasy spring action heavy duty side stand
BELLTring Bell
LIGHTSPowerful Front and Rear LED Lights
